Cost Savings Analysis

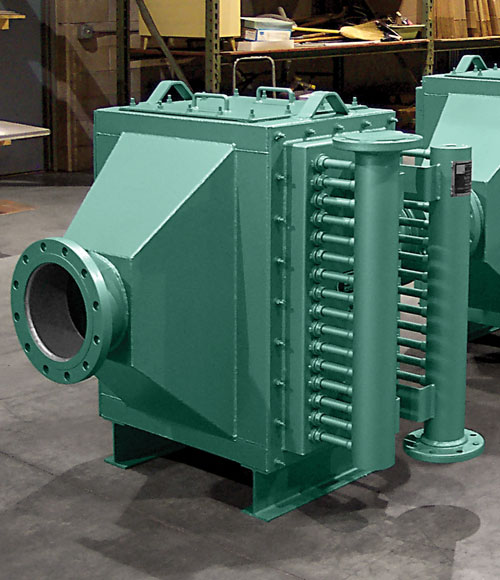

U-Tube Recovery (UTR1)



Performance without a Cain System

  • Combustion source: Engine Generator
  • Heat Sink: 50% Glycol / 50% Water Loop
  • Waste Exhaust Temp: 645 °F
  • Water Temp Inlet: 250°F
  • SCFM: 6,739
  • Fuel Type: Natural gas
  • O2 Content: N/A
  • Excess Air: N/A
  • Fuel Cost Per Therm: $0.60
  • Annual Operating Hours: 6,000

Performance with a Cain System

  • Circulating Liquid Flow: 400 GPM
  • Final Exhaust Temp: 357 °F
  • Water Temp. Outlet: 263.3 °F
  • Water Pressure Drop: 0.04 PSIG
  • Exhaust Pressure Drop: 2.00 WC"
  • Btu/hr Recovered: 2,341,000
  • Total Cost: $22,455
  • Payback: 4.8 months
  • Annual Return On Investment: 250%
  • Annual Savings: $56,176
